1JZ non-VVTi Turbocharger Kit

We’ve partnered with Artec Performance Australia to create a complete turbocharger kit featuring their investment-cast exhaust manifold line. Our turbo kit offerings for Toyota's non- VVTi 1JZ engines are built around a twin-scroll manifold and turbine, helping to improve bottom end torque which is often lacking compared to the later VVTi version of this engine. Available with turbo options ranging from 400-800+HP ensures that exact sizing and flow matching is optimized for any unique JZ application.

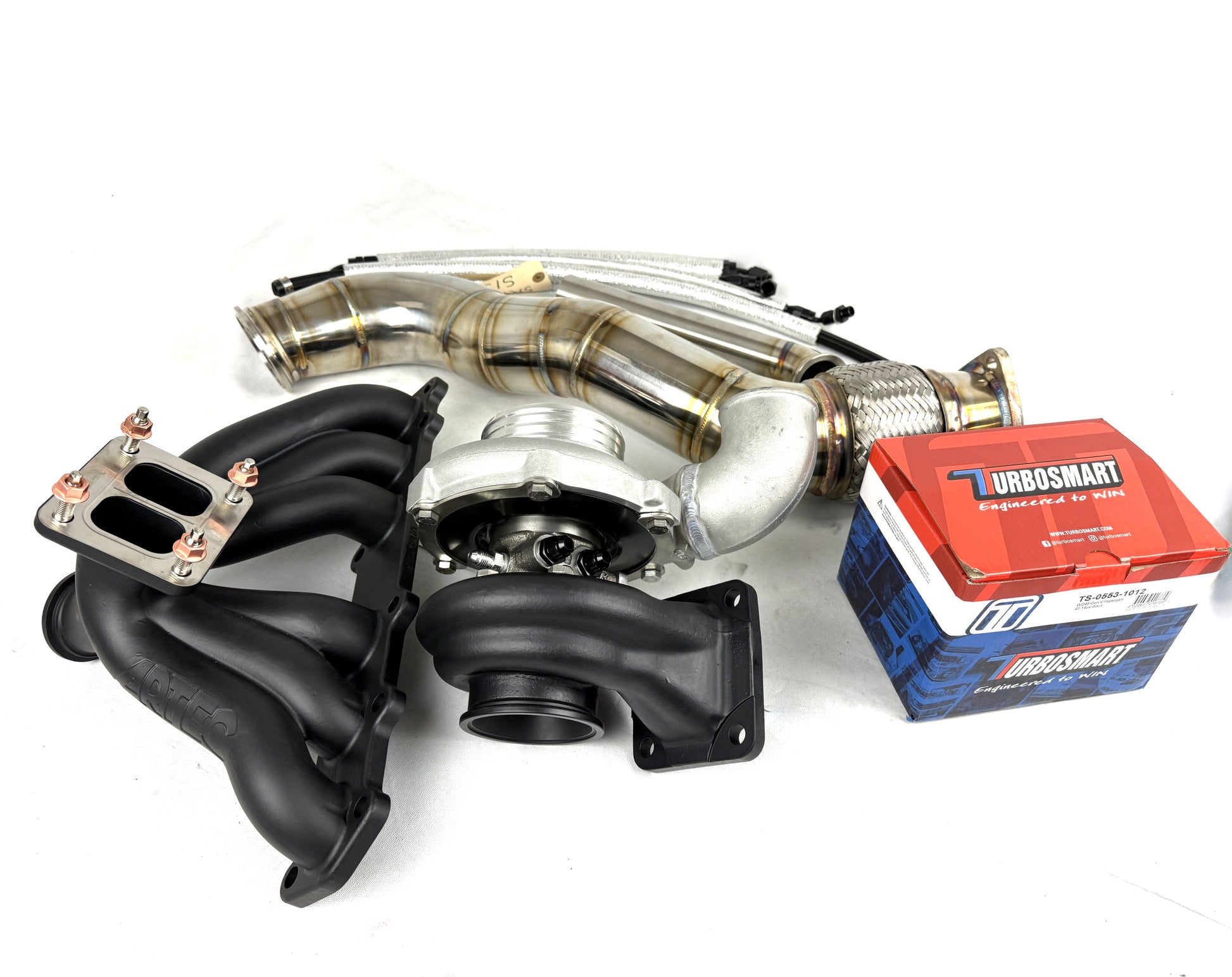

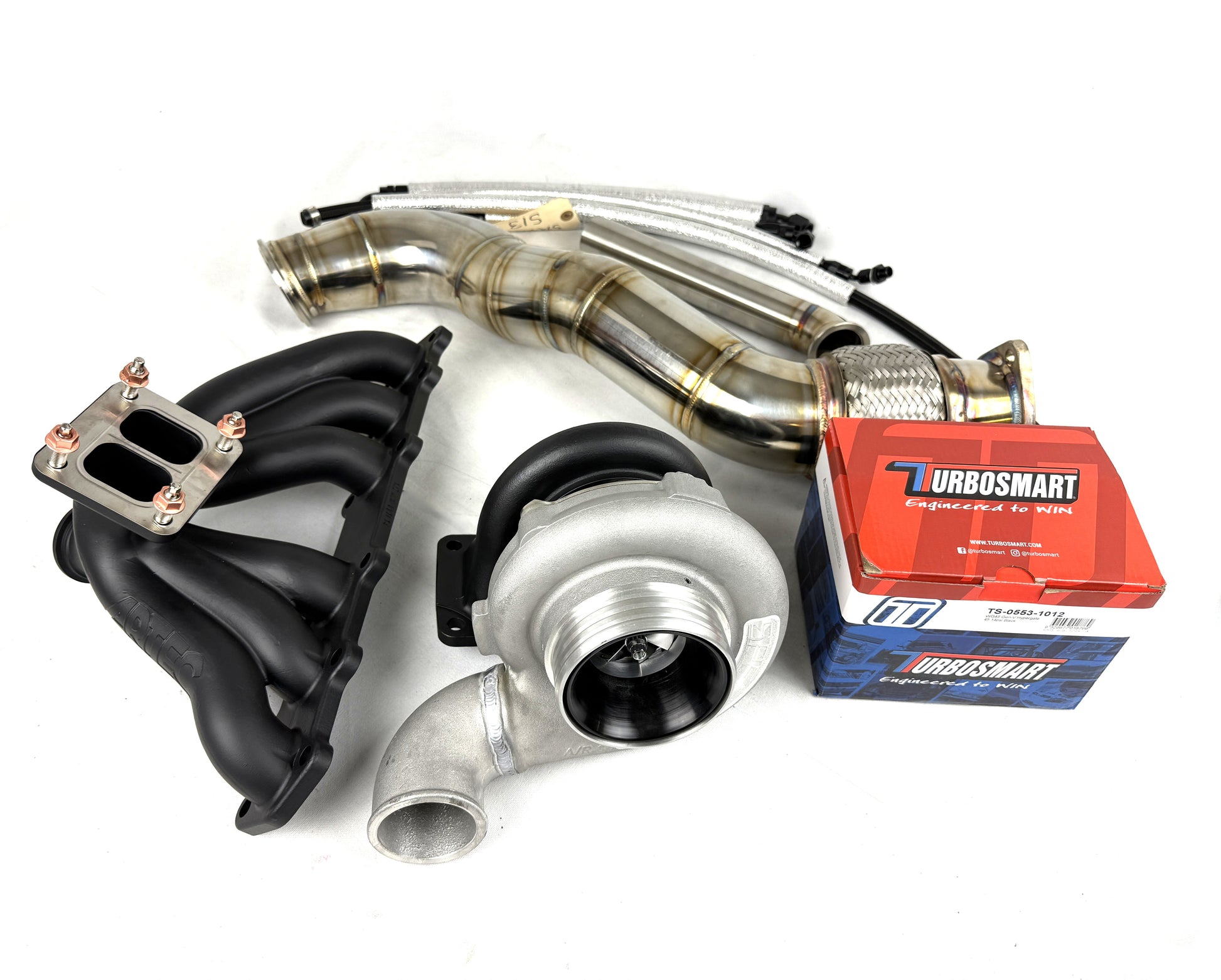

Full Conversion Kit Includes:

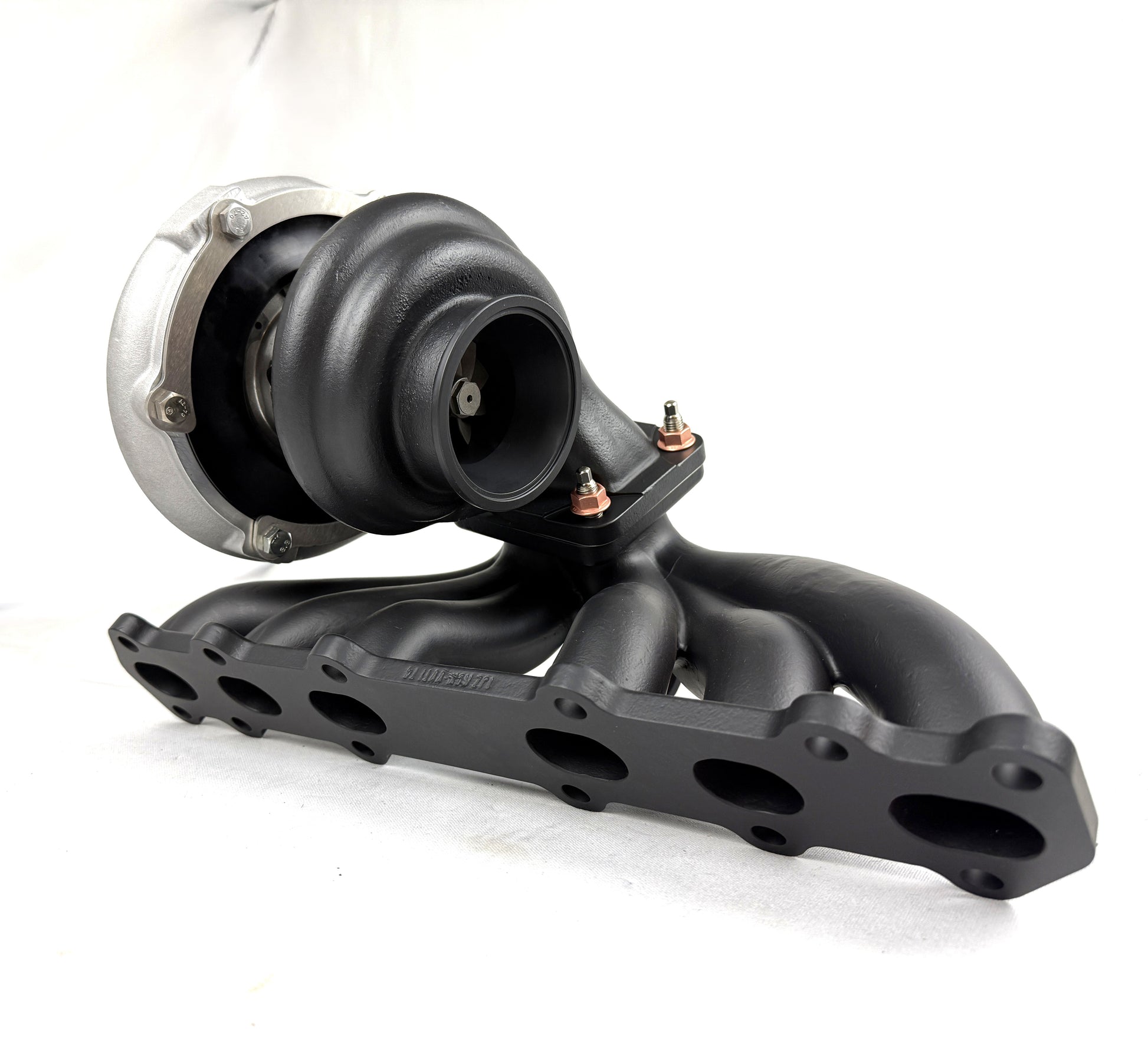

Artec Top Mount Twin-Scroll Exhaust Manifold

Dual Ball Bearing Turbocharger (custom specified for 1JZ)

3" Stainless Downpipe, terminating with a 3" V-band connection for the mid-pipe

Oil and Water Line Installation Kit

Turbosmart Gen V 45mm Wastegate

Wastegate Screamer pipe

3" or 4" Inlet and K&N Filter Kit (hot pipe not included)

 Fasteners, Clamps, Gaskets, and Hardware

Turbocharger Spec Options:

Up to 450 WHP: 55/R

Up to 525 WHP: 57/R

Up to 550WHP: SR/59

Up to 650WHP: SR/61

Please note ***

- Due to different chassis / fitment and preferences for intercooler piping, a intercooler hot pipe is not included in the top mount kit.

- Downpipe fitment has been confirmed with LHD and RHD JZX80/JZX83 applications, as well as S13 - however S13 swap mounts may need modification depending on the manufacturer. Lower donwpipe flange is universal - and will not directly bolt into any OEM exhaust components. A mating v-band flange and clamp is included to facilitate fabrication of a mating mid-pipe.

Professional installation is recommended for optimal results.

Please note - our current lead time is 2-4 weeks.

***images shown include custom / non-standard options***
