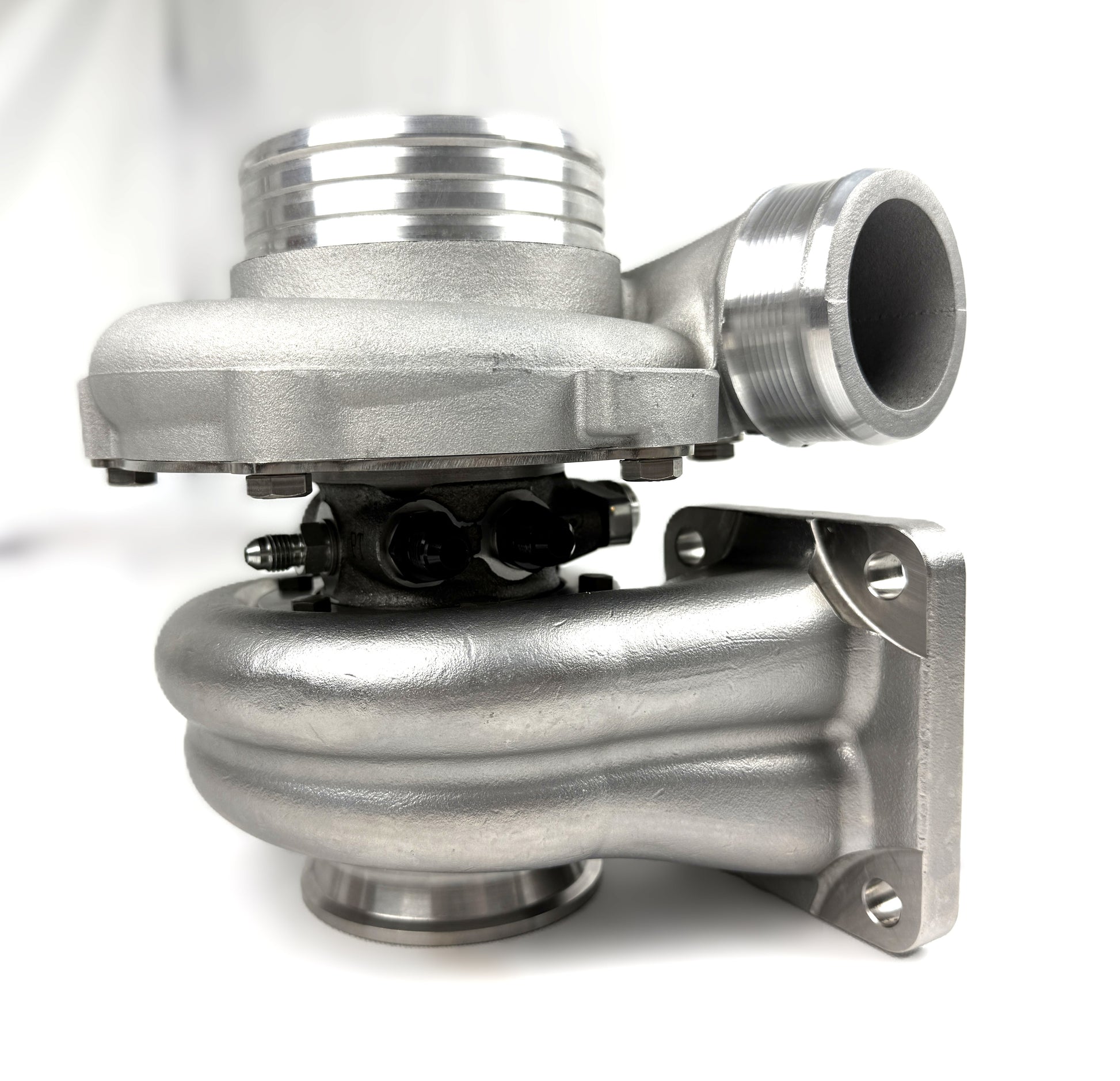

SR/59 Turbocharger

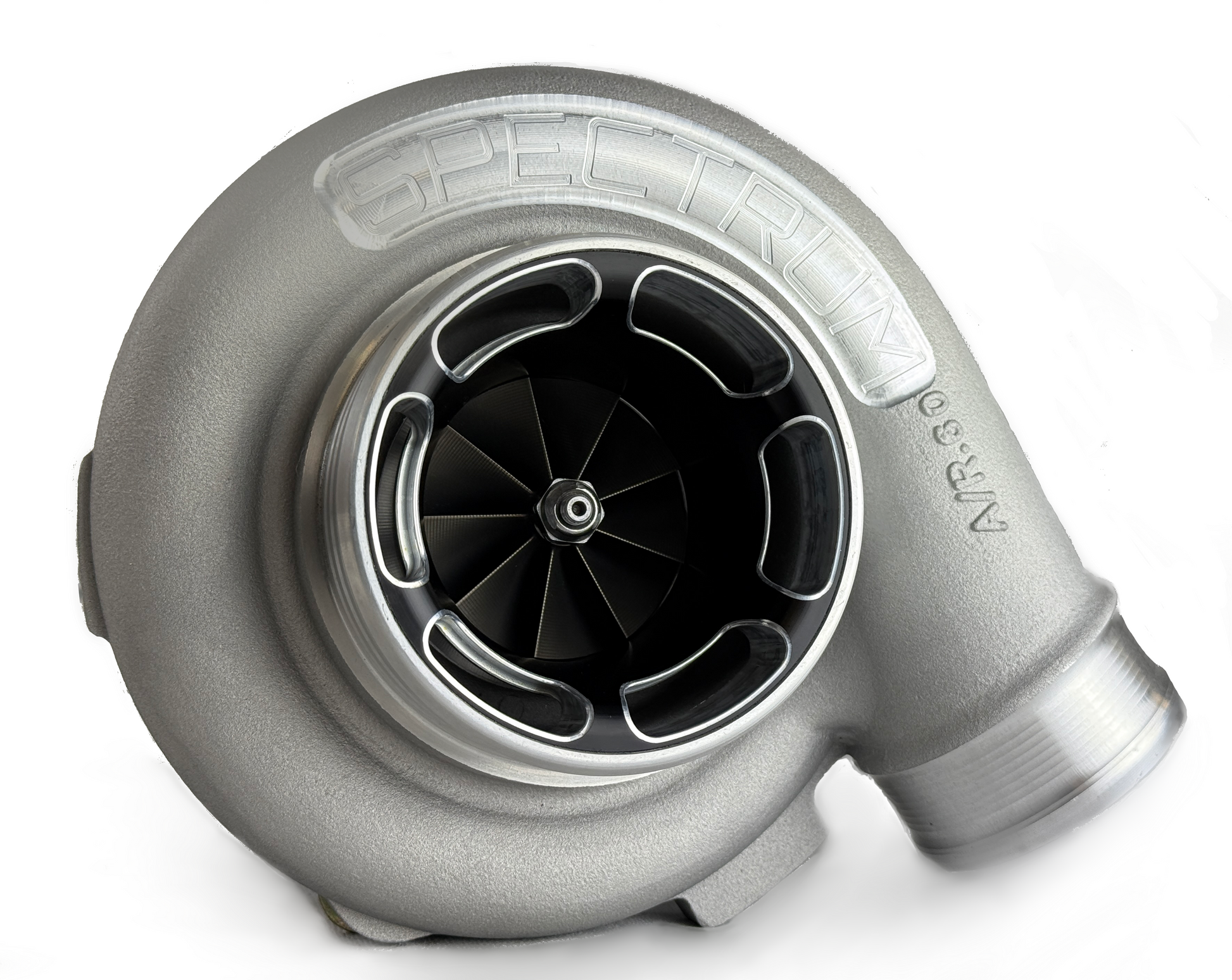

The second generation of our popular SR/58 turbo now features a point-milled 9 Blade 59mm compressor wheel with reduced inertia and increased backsweep.  This improves upon the impressive response that the SR/58 is known for, and further increases the maximum power capability. This is a great choice for those wanting reponse and high efficiency at low to medium pressure ratios.

Optimized for 2.0-3.0L displacement engines with power outputs between 450 and 600BHP, the SR/59 turbocharger is well suited to many high performance modern engine applications. It's 59mm compressor inducer supports flow rates of 62 lb/min, while also providing impressive surge resistance and supporting a wide flow rage; critical for correctly matching the high volumetric efficiency across wide RPM ranges seen with today's modern 4 and (smaller) 6 cylinder engines.

Optional compressor shroud designs further increase compressor map width, while also improving compressor efficiency closer to surge, resulting in impressive spool characteristics and low to mid range engine torque output.  Based around a patented and fully serviceable ball-bearing cartridge featuring second-to-none materials selection throughout, this turbocharger is built to last even under high temperatures and rotor speeds.

A wide range of turbine options are available, allowing for a perfect turbine match under virtually any operating conditions. For most applications, It's standard radial-flow turbine wheel, made of the high-nickel Inconel 713-C superalloy with .82A/R open volute housing is a great fit. The serviceable and modular nature of the CHRA design, in conjunction with our commitment to customer satisfaction and product adaptability, allows for repair, modification, or upgrading of your turbocharger at any time, without the unnecessary re-purchasing of a entire new unit.

OPERATIONAL SPECIFICATIONS:

Compressor choked flow rate : 62 lb/min (corrected)
Compressor flow range at 2:1 PR: 13-56 lb/min (corrected)
Max. Compressor efficiency: 75%
Max. Pressure ratio: 3:1
Max. Compressor tip speed: 510 M/S (130,000RPM)
Max. Turbine inlet temp: 985C (cast) / 1025C (316SS)

DESIGN SPECIFICATIONS:

Compressor:

Billet 2816 Aluminum / 5-axis machined wheel
59mm full-bladed inducer
.65 A/R housing volute
Billet Aluminum backplate
4" compressor inlet / 2.5" compressor outlet

CHRA:

Water-cooled, Ball bearing Cartridge
Integrated oil feed restrictor
Silocone Nitride Ceramic balls
M50 bearing rings
Silver-plated 4340 bearing cages

Turbine:

Inconel 713-C turbine wheel w/ 4340 chromoly shaft
62mm exducer diameter
.82 or 95 A/R housing Volute
V-band. T3, or T4 divided inlet flange
V-band 3" turbine discharge flange

Optional features:

Cerakote Ceramic turbine housing coating
Custom anodizing of any billet aluminum components

Professional installation recommended.

All of our turbochargers are built to order for your exact requirements and specifications and our current lead time is 2 weeks.  Please email info@spectrummotorsportssolutions.com for more information.
